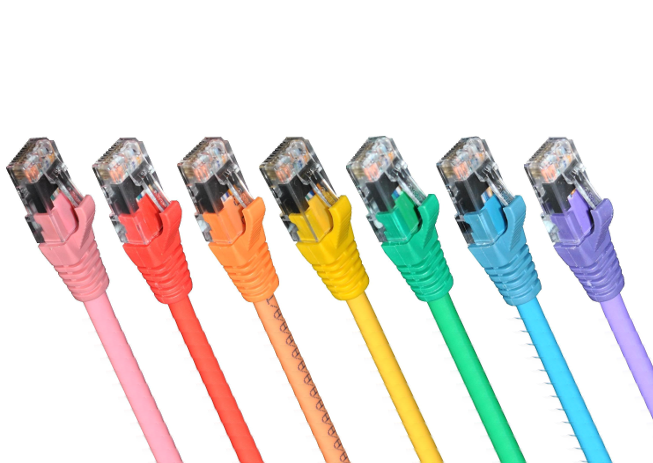

V-ADD Cat6 LSZH Patch Cords are high quality four pair twisted stranded cable terminated with RJ45 modular plugs with suitable boots at both the ends. Plugs are The transparent snag-less & boot to provided maximum protection to connections. The design is tangle free. It is ANSI/TIA/EIA-568-C.2 standard. These patch cords are suitable for high speed data transmission.
| Specifications :- | Application |
|---|---|
| Conductor : | tv AWG Multi-strands srBASE-T,srrBASE-TX Fast Ethernet |
| Conductor Metal: | TIN Plated Bare Copper srrrBASE-T,srGBASE-TIEEEzrt.u. |
| Insulation Material : | LSZ (srrVG-Any LAN) EEEzrt.st |
| Outer Diameter : | w.zmm+r.t wwrM(z Broadband Video |
| Material : | LSZ(UL{vV-r Voice,TS,}SDN |
| Color Code : | Cool Grey wC sww/xtt Mbps ATM |
| Each Resistance : | xrC minimum Power over Ethernet PoE T emperature limited |
| Flame Property : | The purpose of the vertical flame test is to screen out flammable wires.It is follows the VW-s ULanFT-s CSA standards. |
| Insertion Cycles : | ywr times |
| Tensile Strength : | wr Newtome |
| RJ-45 8P for transparent color Gold Plated | 50/100'' Nickel |
|---|---|
| Contact Blade | Phosphors Bronze Plug dimensions & port 68 tolerances compliant with FCC and IEC 60603-7 |
| Temperature Range | -40 -85 C |
| Dielectric withstanding voltage | 500 AC |
| Insulation resistance | 35M 0hm (max.) |
| UL Applications | 250V AC, PC UL 94-V-0 |
| Max. Current | 1.5A@25C |
